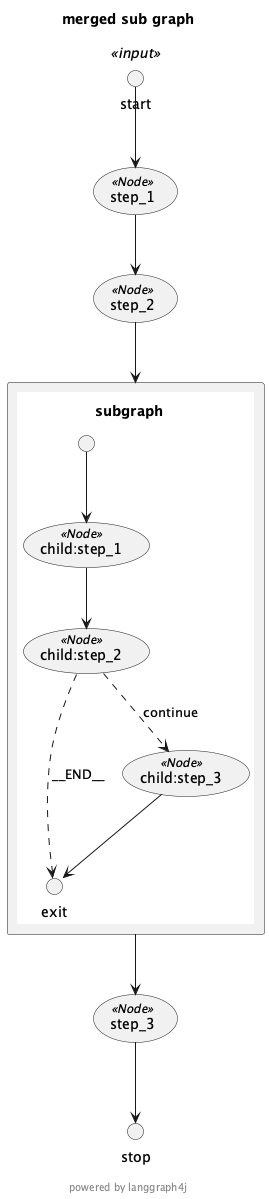

子图作为 CompiledGraph

在 Spring AI Alibaba 中，可以先编译 StateGraph 得到 CompiledGraph，然后在其他 Graph 中复用，这种方式性能更好且更灵活。

CompiledGraph vs StateGraph

| 特性 | StateGraph | CompiledGraph |

|------|-----------|---------------|

| 定义时机 | 构建时 | 编译后 |

| 性能 | 需要每次编译 | 预编译，性能更好 |

| 灵活性 | 可修改 | 不可修改 |

| 复用 | 可以但需重新编译 | 直接复用 |

基本用法

创建并编译子图

import com.alibaba.cloud.ai.graph.CompiledGraph;

import com.alibaba.cloud.ai.graph.KeyStrategy;

import com.alibaba.cloud.ai.graph.KeyStrategyFactory;

import com.alibaba.cloud.ai.graph.StateGraph;

import com.alibaba.cloud.ai.graph.exception.GraphStateException;

import com.alibaba.cloud.ai.graph.state.strategy.ReplaceStrategy;



import java.util.HashMap;

import java.util.Map;



import static com.alibaba.cloud.ai.graph.StateGraph.END;

import static com.alibaba.cloud.ai.graph.StateGraph.START;

import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.node_async;



/**

 * 创建并编译子图

 */

public static CompiledGraph createAndCompileSubGraph() throws GraphStateException {

KeyStrategyFactory subKeyFactory = () -> {

    HashMap<String, KeyStrategy> strategies = new HashMap<>();

    strategies.put("input", new ReplaceStrategy());

    strategies.put("output", new ReplaceStrategy());

    return strategies;

};



// 定义并编译子图

StateGraph subGraphDef = new StateGraph(subKeyFactory)

            .addNode("process", node_async(state -> {

        String input = (String) state.value("input").orElse("");

        String output = "Processed: " + input.toUpperCase();

        return Map.of("output", output);

    }))

            .addEdge(START, "process")

            .addEdge("process", END);



// 编译子图

    return subGraphDef.compile();

}

在节点中使用 CompiledGraph

import com.alibaba.cloud.ai.graph.CompiledGraph;

import com.alibaba.cloud.ai.graph.OverAllState;

import com.alibaba.cloud.ai.graph.RunnableConfig;

import com.alibaba.cloud.ai.graph.action.NodeAction;



import java.util.Map;



/**

 * 在节点中使用 CompiledGraph

 */

public static class CompiledSubGraphNode implements NodeAction {



    private final CompiledGraph compiledGraph;



    public CompiledSubGraphNode(CompiledGraph compiledGraph) {

        this.compiledGraph = compiledGraph;

    }



    @Override

    public Map<String, Object> apply(OverAllState state) {

        // 从父状态提取输入

        String input = (String) state.value("data").orElse("");



        // 执行编译好的子图

        Map<String, Object> subInput = Map.of("input", input);

        OverAllState subResult = compiledGraph.invoke(subInput, RunnableConfig.builder().build()).orElseThrow();



        // 提取子图输出

        String output = (String) subResult.value("output").orElse("");

        return Map.of("result", output);

    }

}

在父图中使用

import com.alibaba.cloud.ai.graph.CompiledGraph;

import com.alibaba.cloud.ai.graph.StateGraph;



import static com.alibaba.cloud.ai.graph.StateGraph.END;

import static com.alibaba.cloud.ai.graph.StateGraph.START;

import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.node_async;



/**

 * 在父图中使用

 */

public static CompiledGraph useInParentGraph(CompiledGraph compiledSubGraph) throws GraphStateException {

KeyStrategyFactory parentKeyFactory = () -> {

    HashMap<String, KeyStrategy> strategies = new HashMap<>();

    strategies.put("data", new ReplaceStrategy());

    strategies.put("result", new ReplaceStrategy());

    return strategies;

};



StateGraph parentGraph = new StateGraph(parentKeyFactory)

            .addNode("prepare", node_async(state ->

        Map.of("data", "hello world")))

            .addNode("subgraph", compiledSubGraph)

            .addNode("finalize", node_async(state -> {

        String result = (String) state.value("result").orElse("");

        return Map.of("final", "Done: " + result);

    }))

            .addEdge(START, "prepare")

    .addEdge("prepare", "subgraph")

    .addEdge("subgraph", "finalize")

            .addEdge("finalize", END);



    return parentGraph.compile();

}

多个子图复用

同一个 CompiledGraph 可以在多个地方复用：

/**

 * 多个子图复用

 */

public static CompiledGraph reuseMultipleSubGraphs(CompiledGraph dataProcessor) throws GraphStateException {

    KeyStrategyFactory keyFactory = () -> {

        HashMap<String, KeyStrategy> strategies = new HashMap<>();

        strategies.put("data", new ReplaceStrategy());

        strategies.put("result", new ReplaceStrategy());

        return strategies;

    };



    // 在多个节点中复用

    StateGraph mainGraph = new StateGraph(keyFactory)

            .addNode("process1", dataProcessor)

            .addNode("process2", dataProcessor)

            .addNode("process3", dataProcessor)

            .addEdge(START, "process1")

            .addEdge("process1", "process2")

            .addEdge("process2", "process3")

            .addEdge("process3", END);



    return mainGraph.compile();

}



// 在多个节点中复用

StateGraph mainGraph = new StateGraph(keyFactory)

    .addNode("process1", nodeasync(new CompiledSubGraphNode(dataProcessor)))

    .addNode("process2", nodeasync(new CompiledSubGraphNode(dataProcessor)))

    .addNode("process3", nodeasync(new CompiledSubGraphNode(dataProcessor)))

    .addEdge(StateGraph.START, "process1")

    .addEdge("process1", "process2")

    .addEdge("process2", "process3")

    .addEdge("process3", StateGraph.END);

带配置的子图

可配置的 CompiledGraph 包装器

public class ConfigurableCompiledSubGraph implements NodeAction {



    private final CompiledGraph compiledGraph;

    private final Map<String, String> inputMapping;

    private final Map<String, String> outputMapping;



    public ConfigurableCompiledSubGraph(

        CompiledGraph compiledGraph,

        Map<String, String> inputMapping,   // parentKey -> subKey

        Map<String, String> outputMapping   // subKey -> parentKey

    ) {

        this.compiledGraph = compiledGraph;

        this.inputMapping = inputMapping;

        this.outputMapping = outputMapping;

    }



    @Override

    public Map<String, Object> apply(OverAllState parentState) {

        // 映射输入

        Map<String, Object> subInput = new HashMap<>();

        inputMapping.forEach((parentKey, subKey) -> {

            parentState.value(parentKey).ifPresent(value ->

                subInput.put(subKey, value));

        });



        // 执行子图

        OverAllState subResult = compiledGraph.invoke(subInput);



        // 映射输出

        Map<String, Object> parentOutput = new HashMap<>();

        outputMapping.forEach((subKey, parentKey) -> {

            subResult.value(subKey).ifPresent(value ->

                parentOutput.put(parentKey, value));

        });



        return parentOutput;

    }

}



// 使用

CompiledGraph processor = createProcessorGraph().compile();



NodeAction node1 = new ConfigurableCompiledSubGraph(

    processor,

    Map.of("userInput", "input"),      // userInput -> input

    Map.of("output", "processedData")  // output -> processedData

);



NodeAction node2 = new ConfigurableCompiledSubGraph(

    processor,

    Map.of("rawData", "input"),        // rawData -> input

    Map.of("output", "cleanedData")    // output -> cleanedData

);

并行执行多个 CompiledGraph

import java.util.concurrent.CompletableFuture;

import java.util.List;



public class ParallelCompiledGraphNode implements NodeAction {



    private final List<CompiledGraph> graphs;



    public ParallelCompiledGraphNode(List<CompiledGraph> graphs) {

        this.graphs = graphs;

    }



    @Override

    public Map<String, Object> apply(OverAllState state) {

        String input = (String) state.value("input").orElse("");



        // 并行执行所有子图

        List<CompletableFuture<OverAllState>> futures = graphs.stream()

            .map(graph -> CompletableFuture.supplyAsync(() ->

                graph.invoke(Map.of("input", input))))

            .toList();



        // 等待所有完成

        List<OverAllState> results = futures.stream()

            .map(CompletableFuture::join)

            .toList();



        // 合并结果

        List<String> outputs = results.stream()

            .map(r -> (String) r.value("output").orElse(""))

            .toList();



        return Map.of("results", outputs);

    }

}



// 使用

CompiledGraph graph1 = createGraph1().compile();

CompiledGraph graph2 = createGraph2().compile();

CompiledGraph graph3 = createGraph3().compile();



NodeAction parallelNode = new ParallelCompiledGraphNode(

    List.of(graph1, graph2, graph3)

);

带 Checkpoint 的子图

CompiledGraph 可以有自己独立的 checkpoint：

import com.alibaba.cloud.ai.graph.checkpoint.MemorySaver;

import com.alibaba.cloud.ai.graph.CompileConfig;



// 子图使用独立的 checkpoint

var subCheckpointer = new MemorySaver();

var subCompileConfig = CompileConfig.builder()

    .checkpointSaver(subCheckpointer)

    .build();



CompiledGraph compiledSubGraph = subGraphDef.compile(subCompileConfig);



// 执行时指定子图的 threadId

public class CheckpointedSubGraphNode implements NodeAction {



    private final CompiledGraph compiledGraph;

    private final String subThreadIdPrefix;



    public CheckpointedSubGraphNode(

        CompiledGraph compiledGraph,

        String subThreadIdPrefix

    ) {

        this.compiledGraph = compiledGraph;

        this.subThreadIdPrefix = subThreadIdPrefix;

    }



    @Override

    public Map<String, Object> apply(OverAllState state) {

        String input = (String) state.value("input").orElse("");



        // 为子图创建独立的运行配置

        var subConfig = RunnableConfig.builder()

            .threadId(subThreadIdPrefix + "-" + System.currentTimeMillis())

            .build();



        // 执行子图

        OverAllState result = compiledGraph.invoke(

            Map.of("input", input),

            subConfig

        );



        return Map.of("output", result.value("output").orElse(""));

    }

}

性能优化

预编译策略

// 服务启动时预编译所有子图

@Configuration

public class GraphConfiguration {



    @Bean

    public CompiledGraph validationGraph() {

        StateGraph def = createValidationGraph();

        return def.compile();  // 启动时编译一次

    }



    @Bean

    public CompiledGraph transformGraph() {

        StateGraph def = createTransformGraph();

        return def.compile();

    }



    @Bean

    public CompiledGraph aggregationGraph() {

        StateGraph def = createAggregationGraph();

        return def.compile();

    }

}



// 在运行时直接使用预编译的图

@Service

public class WorkflowService {



    @Autowired

    private CompiledGraph validationGraph;



    @Autowired

    private CompiledGraph transformGraph;



    @Autowired

    private CompiledGraph aggregationGraph;



    public void processData(String data) {

        // 直接使用，无需重新编译

        var result1 = validationGraph.invoke(Map.of("input", data));

        var result2 = transformGraph.invoke(Map.of("input", data));

        var result3 = aggregationGraph.invoke(Map.of("input", data));

    }

}

完整示例

// 1. 定义数据验证子图

public CompiledGraph createValidationGraph() {

    KeyStrategyFactory keyFactory = () -> {

        HashMap<String, KeyStrategy> strategies = new HashMap<>();

        strategies.put("data", new ReplaceStrategy());

        strategies.put("isValid", new ReplaceStrategy());

        return strategies;

    };



    StateGraph graph = new StateGraph(keyFactory)

        .addNode("validate", nodeasync(state -> {

            String data = (String) state.value("data").orElse("");

            boolean valid = data != null && !data.isEmpty();

            return Map.of("isValid", valid);

        }))

        .addEdge(StateGraph.START, "validate")

        .addEdge("validate", StateGraph.END);



    return graph.compile();

}



// 2. 定义数据转换子图

public CompiledGraph createTransformGraph() {

    KeyStrategyFactory keyFactory = () -> {

        HashMap<String, KeyStrategy> strategies = new HashMap<>();

        strategies.put("data", new ReplaceStrategy());

        strategies.put("transformed", new ReplaceStrategy());

        return strategies;

    };



    StateGraph graph = new StateGraph(keyFactory)

        .addNode("transform", nodeasync(state -> {

            String data = (String) state.value("data").orElse("");

            return Map.of("transformed", data.toUpperCase());

        }))

        .addEdge(StateGraph.START, "transform")

        .addEdge("transform", StateGraph.END);



    return graph.compile();

}



// 3. 组合使用

CompiledGraph validationGraph = createValidationGraph();

CompiledGraph transformGraph = createTransformGraph();



StateGraph mainGraph = new StateGraph(keyFactory)

    .addNode("validate", nodeasync(state -> {

        String data = (String) state.value("input").orElse("");

        OverAllState result = validationGraph.invoke(Map.of("data", data));

        return Map.of("isValid", result.value("isValid").orElse(false));

    }))

    .addNode("transform", nodeasync(state -> {

        String data = (String) state.value("input").orElse("");

        OverAllState result = transformGraph.invoke(Map.of("data", data));

        return Map.of("output", result.value("transformed").orElse(""));

    }))

    .addEdge(StateGraph.START, "validate")

    .addConditionalEdges("validate",

        edgeasync(state -> {

            Boolean valid = (Boolean) state.value("isValid").orElse(false);

            return valid ? "continue" : "error";

        }),

        Map.of("continue", "transform", "error", StateGraph.END))

    .addEdge("transform", StateGraph.END);



CompiledGraph main = mainGraph.compile();



// 执行

OverAllState result = main.invoke(Map.of("input", "test data"));

System.out.println("Output: " + result.value("output").orElse(""));

附图

png

png

相关文档

Spring AI Alibaba / 子图作为 CompiledGraph 0 字 0 行 cosolar
2026-09-13T09:33:00.052828636Z 2026-09-13T09:47:53.114272064Z
