分配指定的 MCP 给指定的 node 节点

实战代码可见：spring-ai-alibaba-examples 下的 graph 目录，本章代码为其 mcp-node 模块

pom.xml




<dependencies>



    <dependency>

        <groupId>org.springframework.ai</groupId>

        <artifactId>spring-ai-autoconfigure-model-openai</artifactId>

    </dependency>



    <dependency>

        <groupId>org.springframework.ai</groupId>

        <artifactId>spring-ai-autoconfigure-model-chat-client</artifactId>

    </dependency>



    <dependency>

        <groupId>com.alibaba.cloud.ai</groupId>

        <artifactId>spring-ai-alibaba-graph-core</artifactId>

        <version>${spring-ai-alibaba.version}</version>

    </dependency>



    <dependency>

        <groupId>org.springframework.boot</groupId>

        <artifactId>spring-boot-starter-web</artifactId>

    </dependency>

</dependencies>

application.yml

注意 spring.ai.graph.nodes 下的配置，node 配置对应 mcp 服务的映射


server:

  port: 8080

spring:

  application:

    name: mcp-node

  ai:

    openai:

      api-key: ${AIDASHSCOPEAPIKEY}

      base-url: https://dashscope.aliyuncs.com/compatible-mode

      chat:

        options:

          model: qwen-max

    mcp:

      client:

        enabled: true

        name: my-mcp-client

        version: 1.0.0

        request-timeout: 30s

        type: ASYNC  # or ASYNC for reactive applications

        sse:

          connections:

            server1:

              url: http://localhost:19000



    graph:

      nodes:

        node2servers:

          mcp-node:

            - server1

config

McpNodeProperties

node 配置对应 mcp 服务的映射类

package com.spring.ai.tutorial.graph.mcp.config;



import org.springframework.boot.context.properties.ConfigurationProperties;



import java.util.Map;

import java.util.Set;



@ConfigurationProperties(prefix = McpNodeProperties.PREFIX)

public class McpNodeProperties {



    public static final String PREFIX = "spring.ai.graph.nodes";



    private Map<String, Set<String>> node2servers;



    public Map<String, Set<String>> getNode2servers() {

        return node2servers;

    }



    public void setNode2servers(Map<String, Set<String>> node2servers) {

        this.node2servers = node2servers;

    }

}

McpGaphConfiguration

注入 McpClientToolCallbackProvider，提供给 McpNode

package com.spring.ai.tutorial.graph.mcp.config;



import com.alibaba.cloud.ai.graph.GraphRepresentation;

import com.alibaba.cloud.ai.graph.KeyStrategy;

import com.alibaba.cloud.ai.graph.KeyStrategyFactory;

import com.alibaba.cloud.ai.graph.StateGraph;

import com.alibaba.cloud.ai.graph.exception.GraphStateException;

import com.alibaba.cloud.ai.graph.state.strategy.ReplaceStrategy;

import com.spring.ai.tutorial.graph.mcp.node.McpNode;

import com.spring.ai.tutorial.graph.mcp.tool.McpClientToolCallbackProvider;

import org.slf4j.Logger;

import org.slf4j.LoggerFactory;

import org.springframework.ai.chat.client.ChatClient;

import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.boot.context.properties.EnableConfigurationProperties;

import org.springframework.context.annotation.Bean;

import org.springframework.context.annotation.Configuration;



import java.util.HashMap;



import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.nodeasync;



@Configuration

@EnableConfigurationProperties({ McpNodeProperties.class })

public class McpGaphConfiguration {



    private static final Logger logger = LoggerFactory.getLogger(McpGaphConfiguration.class);



    @Autowired

    private McpClientToolCallbackProvider mcpClientToolCallbackProvider;



    @Bean

    public StateGraph mcpGraph(ChatClient.Builder chatClientBuilder) throws GraphStateException {

        KeyStrategyFactory keyStrategyFactory = () -> {

            HashMap<String, KeyStrategy> keyStrategyHashMap = new HashMap<>();



            // 用户输入

            keyStrategyHashMap.put("query", new ReplaceStrategy());

            keyStrategyHashMap.put("mcpcontent", new ReplaceStrategy());

            return keyStrategyHashMap;

        };



        StateGraph stateGraph = new StateGraph(keyStrategyFactory)

                .addNode("mcp", nodeasync(new McpNode(chatClientBuilder, mcpClientToolCallbackProvider)))



                .addEdge(StateGraph.START, "mcp")

                .addEdge("mcp", StateGraph.END);



        // 添加 PlantUML 打印

        GraphRepresentation representation = stateGraph.getGraph(GraphRepresentation.Type.PLANTUML,

                "mcp flow");

        logger.info("\n=== mcp UML Flow ===");

        logger.info(representation.content());

        logger.info("==================================\n");



        return stateGraph;

    }

}

tool

McpClientToolCallbackProvider

根据节点名称，匹配对应的 MCP 提供的 ToolCallback

package com.spring.ai.tutorial.graph.mcp.tool;



import com.spring.ai.tutorial.graph.mcp.config.McpNodeProperties;

import org.apache.commons.compress.utils.Lists;

import org.glassfish.jersey.internal.guava.Sets;

import org.springframework.ai.mcp.McpToolUtils;

import org.springframework.ai.mcp.client.autoconfigure.properties.McpClientCommonProperties;

import org.springframework.ai.tool.ToolCallback;

import org.springframework.ai.tool.ToolCallbackProvider;

import org.springframework.ai.tool.definition.ToolDefinition;

import org.springframework.stereotype.Service;



import java.util.List;

import java.util.Set;



@Service

public class McpClientToolCallbackProvider {



    private final ToolCallbackProvider toolCallbackProvider;



    private final McpClientCommonProperties commonProperties;



    private final McpNodeProperties mcpNodeProperties;



    public McpClientToolCallbackProvider(ToolCallbackProvider toolCallbackProvider,

                                         McpClientCommonProperties commonProperties, McpNodeProperties mcpNodeProperties) {

        this.toolCallbackProvider = toolCallbackProvider;

        this.commonProperties = commonProperties;

        this.mcpNodeProperties = mcpNodeProperties;

    }



    public Set<ToolCallback> findToolCallbacks(String nodeName) {

        Set<ToolCallback> defineCallback = Sets.newHashSet();

        Set<String> mcpClients = mcpNodeProperties.getNode2servers().get(nodeName);

        if (mcpClients == null || mcpClients.isEmpty()) {

            return defineCallback;

        }



        List<String> exceptMcpClientNames = Lists.newArrayList();

        for (String mcpClient : mcpClients) {

            // my-mcp-client

            String name = commonProperties.getName();

            // mymcpclientserver1

            String prefixedMcpClientName = McpToolUtils.prefixedToolName(name, mcpClient);

            exceptMcpClientNames.add(prefixedMcpClientName);

        }



        ToolCallback[] toolCallbacks = toolCallbackProvider.getToolCallbacks();

        for (ToolCallback toolCallback : toolCallbacks) {

            ToolDefinition toolDefinition = toolCallback.getToolDefinition();

            // mymcpclientserver1getCityTimeMethod

            String name = toolDefinition.name();

            for (String exceptMcpClientName : exceptMcpClientNames) {

                if (name.startsWith(exceptMcpClientName)) {

                    defineCallback.add(toolCallback);

                }

            }

        }

        return defineCallback;

    }

}

node

McpNode

通过 ToolCallbacks 为节点配置 MCP 工具

import com.alibaba.cloud.ai.graph.OverAllState;

import com.alibaba.cloud.ai.graph.action.NodeAction;



import org.springframework.ai.chat.client.ChatClient;

import org.springframework.ai.tool.ToolCallback;



import java.util.HashMap;

import java.util.Map;

import java.util.Set;



import reactor.core.publisher.Flux;



/**

 * MCP 节点实现

 */

public static class McpNode implements NodeAction {



    private static final String NODENAME = "mcp-node";



    private final ChatClient chatClient;



    public McpNode(ChatClient.Builder chatClientBuilder, Set<ToolCallback> toolCallbacks) {

        // 为节点配置 MCP 工具

        this.chatClient = chatClientBuilder

                .defaultToolCallbacks(toolCallbacks.toArray(ToolCallback[]::new))

                .build();

    }



    @Override

    public Map<String, Object> apply(OverAllState state) {

        String query = state.value("query", "");

        Flux<String> streamResult = chatClient.prompt(query).stream().content();

        String result = streamResult.reduce("", (acc, item) -> acc + item).block();



        HashMap<String, Object> resultMap = new HashMap<>();

        resultMap.put("mcpcontent", result);



        return resultMap;

    }

}

配置 MCP 节点

import com.alibaba.cloud.ai.graph.OverAllState;

import com.alibaba.cloud.ai.graph.action.NodeAction;

import org.springframework.ai.chat.client.ChatClient;

import org.springframework.ai.tool.ToolCallback;



import java.util.Set;



/**

 * 配置 MCP 节点

 */

public static void configureMcpNode(ChatClient.Builder chatClientBuilder, Set<ToolCallback> toolCallbacks) {

    McpNode mcpNode = new McpNode(chatClientBuilder, toolCallbacks);

    System.out.println("MCP node configured successfully");

}

controller

McpController

package com.spring.ai.tutorial.graph.mcp.controller;



import com.alibaba.cloud.ai.graph.CompiledGraph;

import com.alibaba.cloud.ai.graph.OverAllState;

import com.alibaba.cloud.ai.graph.RunnableConfig;

import com.alibaba.cloud.ai.graph.StateGraph;

import com.alibaba.cloud.ai.graph.exception.GraphStateException;

import org.slf4j.Logger;

import org.slf4j.LoggerFactory;

import org.springframework.beans.factory.annotation.Qualifier;

import org.springframework.web.bind.annotation.GetMapping;

import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RequestParam;

import org.springframework.web.bind.annotation.RestController;



import java.util.HashMap;

import java.util.Map;

import java.util.Optional;



@RestController

@RequestMapping("/graph/mcp")

public class McpController {



    private static final Logger logger = LoggerFactory.getLogger(McpController.class);



    private final CompiledGraph compiledGraph;



    public McpController(@Qualifier("mcpGraph") StateGraph stateGraph) throws GraphStateException {

        this.compiledGraph = stateGraph.compile();

    }



    @GetMapping("/call")

    public Map<String, Object> call(@RequestParam(value = "query", defaultValue = "北京时间现在几点钟", required = false) String query,

                                      @RequestParam(value = "threadid", defaultValue = "yingzi", required = false) String threadId){

        RunnableConfig runnableConfig = RunnableConfig.builder().threadId(threadId).build();

        Map<String, Object> objectMap = new HashMap<>();

        objectMap.put("query", query);

        Optional<OverAllState> invoke = this.compiledGraph.invoke(objectMap, runnableConfig);

        return invoke.map(OverAllState::data).orElse(new HashMap<>());

    }



}

MCP Server 服务提供

提供一个 MCP Server 服务，远端 or 本地都可以

这里本地启动一个MCP Server，提供一个时间服务

效果

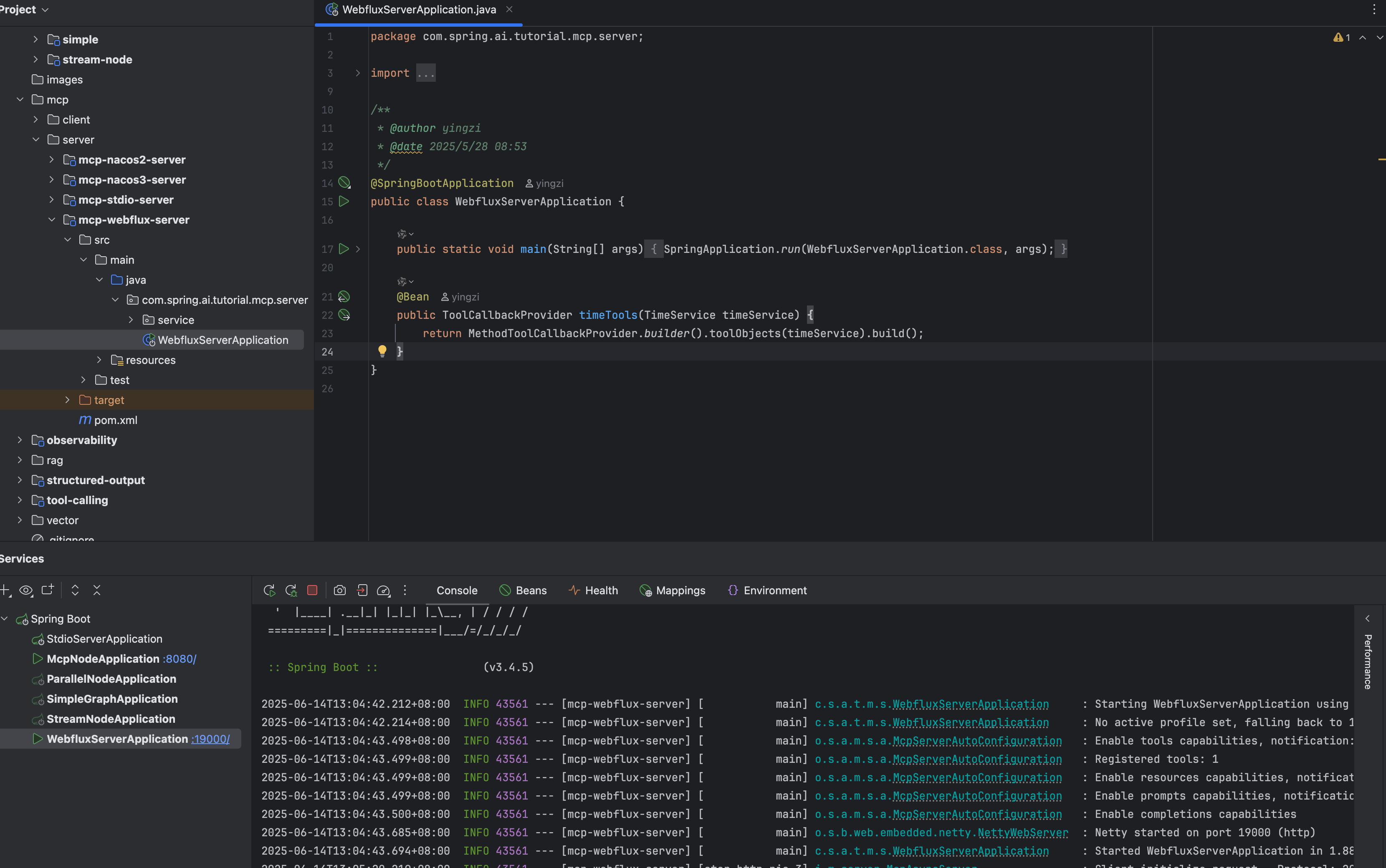

启动本地 MCP Server，提供时间服务

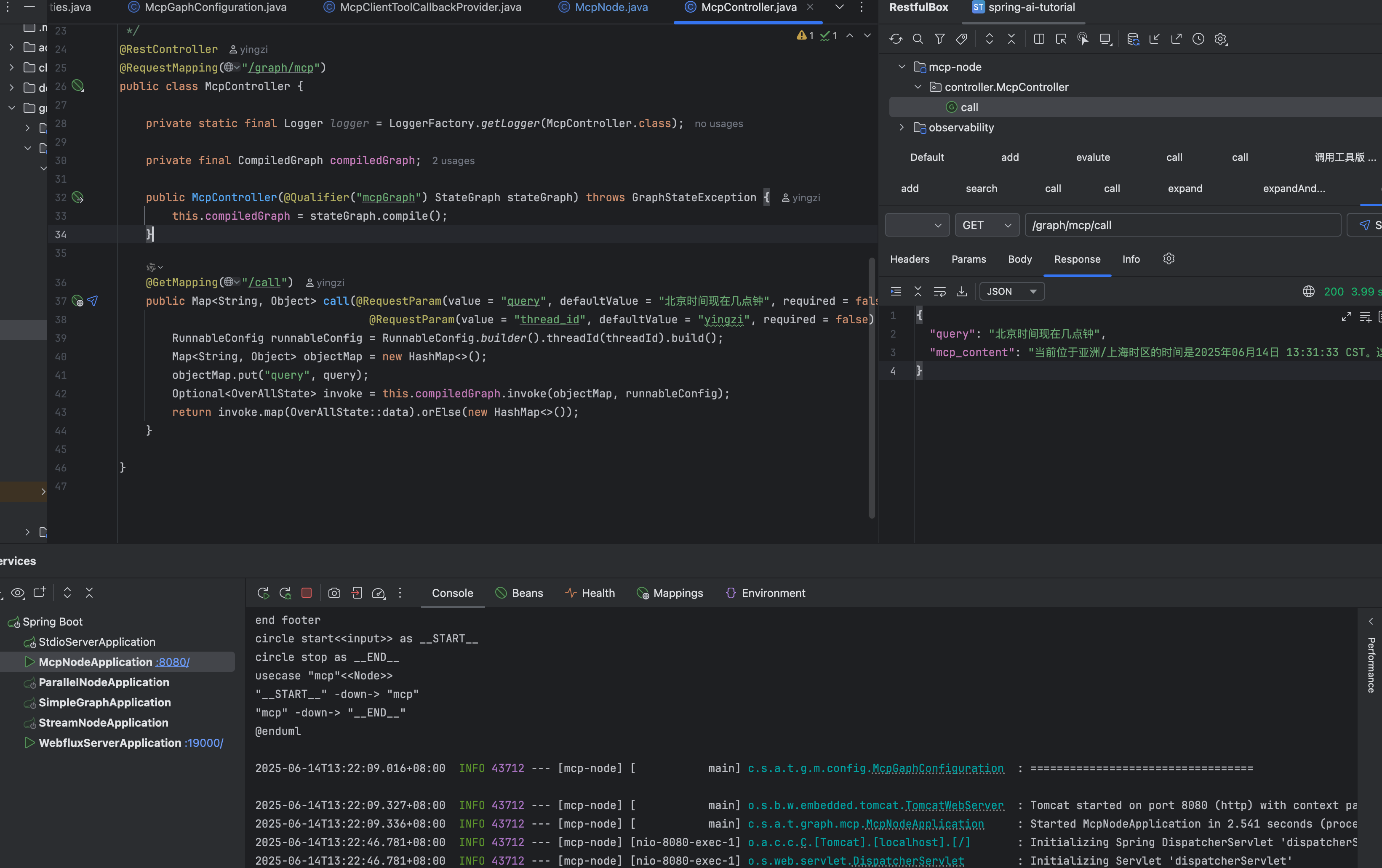

调用接口，触发本地端 MCP Server 提供的时间服务
