子图作为节点操作

在 Spring AI Alibaba Graph 中，可以将一个完整的 Graph 作为另一个 Graph 的节点，实现工作流的模块化设计。

概念

将子图作为 NodeAction 使用，可以：

模块化: 将复杂工作流拆分为可重用的子模块
封装: 隐藏子图的内部实现细节
组合: 构建层次化的工作流结构

基本示例

定义子图

import com.alibaba.cloud.ai.graph.CompiledGraph;

import com.alibaba.cloud.ai.graph.KeyStrategy;

import com.alibaba.cloud.ai.graph.KeyStrategyFactory;

import com.alibaba.cloud.ai.graph.StateGraph;

import com.alibaba.cloud.ai.graph.exception.GraphStateException;

import com.alibaba.cloud.ai.graph.state.strategy.ReplaceStrategy;



import java.util.HashMap;

import java.util.Map;



import static com.alibaba.cloud.ai.graph.StateGraph.END;

import static com.alibaba.cloud.ai.graph.StateGraph.START;

import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.node_async;



/**

 * 定义子图

 */

public static CompiledGraph createSubGraph(KeyStrategyFactory keyStrategyFactory) throws GraphStateException {

    StateGraph subGraph = new StateGraph(keyStrategyFactory)

            .addNode("substep1", node_async(state -> {

            String input = (String) state.value("input").orElse("");

            return Map.of("result", "SubStep1:" + input);

        }))

            .addNode("substep2", node_async(state -> {

            String prev = (String) state.value("result").orElse("");

            return Map.of("result", prev + "->SubStep2");

        }))

            .addEdge(START, "substep1")

        .addEdge("substep1", "substep2")

            .addEdge("substep2", END);



    return subGraph.compile();

}

将子图包装为 NodeAction

import com.alibaba.cloud.ai.graph.CompiledGraph;

import com.alibaba.cloud.ai.graph.OverAllState;

import com.alibaba.cloud.ai.graph.RunnableConfig;

import com.alibaba.cloud.ai.graph.action.NodeAction;



import java.util.Map;

import java.util.Optional;



/**

 * 将子图包装为 NodeAction

 */

public static class SubGraphNode implements NodeAction {



    private final CompiledGraph subGraph;



    public SubGraphNode(CompiledGraph subGraph) {

        this.subGraph = subGraph;

    }



    @Override

    public Map<String, Object> apply(OverAllState state) {

        // 从父状态提取子图需要的数据

        String input = (String) state.value("data").orElse("");



        // 执行子图

        Map<String, Object> subInput = Map.of("input", input);

        Optional<OverAllState> subResult = subGraph.invoke(subInput, RunnableConfig.builder().build());



        // 返回结果给父图

        String result = (String) subResult.get().value("result").orElse("");

        return Map.of("processed", result);

    }

}

在父图中使用

import com.alibaba.cloud.ai.graph.CompiledGraph;

import com.alibaba.cloud.ai.graph.StateGraph;



import static com.alibaba.cloud.ai.graph.StateGraph.END;

import static com.alibaba.cloud.ai.graph.StateGraph.START;

import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.node_async;



/**

 * 在父图中使用

 */

public static CompiledGraph useInParentGraph(KeyStrategyFactory keyStrategyFactory, CompiledGraph subGraph) throws GraphStateException {

SubGraphNode subGraphNode = new SubGraphNode(subGraph);



StateGraph parentGraph = new StateGraph(keyStrategyFactory)

            .addNode("prepare", node_async(state -> {

        return Map.of("data", "Input Data");

    }))

            .addNode("process", node_async(subGraphNode))  // 使用子图作为节点

            .addNode("finalize", node_async(state -> {

        String processed = (String) state.value("processed").orElse("");

        return Map.of("final", "Final:" + processed);

    }))

            .addEdge(START, "prepare")

    .addEdge("prepare", "process")

    .addEdge("process", "finalize")

            .addEdge("finalize", END);



    return parentGraph.compile();

}

执行父图

// 执行

OverAllState result = compiledParent.invoke(Map.of());

System.out.println("Final result: " + result.value("final").orElse(""));



// 输出: Final result: Final:SubStep1:Input Data->SubStep2

高级示例 - 带参数的子图

// 可配置的子图节点

public class ConfigurableSubGraphNode implements NodeAction {



    private final CompiledGraph subGraph;

    private final String inputKey;

    private final String outputKey;



    public ConfigurableSubGraphNode(

        CompiledGraph subGraph,

        String inputKey,

        String outputKey

    ) {

        this.subGraph = subGraph;

        this.inputKey = inputKey;

        this.outputKey = outputKey;

    }



    @Override

    public Map<String, Object> apply(OverAllState state) {

        // 从父状态读取指定键的数据

        Object input = state.value(inputKey).orElse(null);



        // 执行子图

        OverAllState subResult = subGraph.invoke(Map.of("input", input));



        // 将结果写入指定键

        Object output = subResult.value("result").orElse(null);

        return Map.of(outputKey, output);

    }

}



// 使用

CompiledGraph subGraph = createSubGraph(keyStrategyFactory);

NodeAction configurableNode = new ConfigurableSubGraphNode(

    subGraph,

    "userInput",    // 从父状态读取 userInput

    "processedOutput"  // 写入 processedOutput

);

状态映射

处理父子图之间的状态映射：

public class SubGraphNodeWithMapping implements NodeAction {



    private final CompiledGraph subGraph;

    private final Function<OverAllState, Map<String, Object>> inputMapper;

    private final BiFunction<OverAllState, OverAllState, Map<String, Object>> outputMapper;



    public SubGraphNodeWithMapping(

        CompiledGraph subGraph,

        Function<OverAllState, Map<String, Object>> inputMapper,

        BiFunction<OverAllState, OverAllState, Map<String, Object>> outputMapper

    ) {

        this.subGraph = subGraph;

        this.inputMapper = inputMapper;

        this.outputMapper = outputMapper;

    }



    @Override

    public Map<String, Object> apply(OverAllState parentState) {

        // 使用 mapper 转换父状态到子状态

        Map<String, Object> subInput = inputMapper.apply(parentState);



        // 执行子图

        OverAllState subResult = subGraph.invoke(subInput);



        // 使用 mapper 转换子状态到父状态

        return outputMapper.apply(parentState, subResult);

    }

}

应用场景

数据处理管道: 将数据清洗、转换、验证等步骤封装为独立子图
微服务编排: 每个微服务调用封装为子图
条件处理: 根据不同条件选择不同的子图执行
并行处理: 多个子图并行执行不同任务
版本控制: 不同版本的处理逻辑封装为不同子图

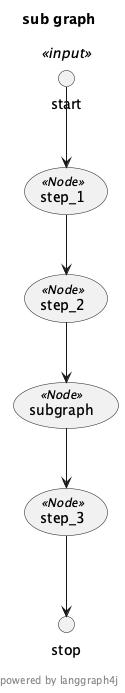

附图
