子图作为 StateGraph

在 Spring AI Alibaba 中，可以将一个 StateGraph 嵌入到另一个 StateGraph 中，实现复杂工作流的模块化设计。

基本概念

将 StateGraph 作为子图使用有以下优势：

  • 复用性: 相同的子图可以在多个父图中复用

  • 可维护性: 独立开发和测试每个子图

  • 清晰性: 层次化结构使工作流更易理解

定义子图

import com.alibaba.cloud.ai.graph.CompiledGraph;

import com.alibaba.cloud.ai.graph.KeyStrategy;

import com.alibaba.cloud.ai.graph.KeyStrategyFactory;

import com.alibaba.cloud.ai.graph.StateGraph;

import com.alibaba.cloud.ai.graph.exception.GraphStateException;

import com.alibaba.cloud.ai.graph.state.strategy.ReplaceStrategy;



import java.util.HashMap;

import java.util.Map;



import static com.alibaba.cloud.ai.graph.StateGraph.END;

import static com.alibaba.cloud.ai.graph.StateGraph.START;

import static com.alibaba.cloud.ai.graph.action.AsyncEdgeAction.edge_async;

import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.node_async;



/**

 * 定义子图

 */

public static StateGraph createProcessingSubGraph() throws GraphStateException {

    KeyStrategyFactory keyFactory = () -> {

        HashMap<String, KeyStrategy> strategies = new HashMap<>();

        strategies.put("input", new ReplaceStrategy());

        strategies.put("output", new ReplaceStrategy());

        strategies.put("valid", new ReplaceStrategy());

        return strategies;

    };



    return new StateGraph(keyFactory)

            .addNode("validate", node_async(state -> {

            String input = (String) state.value("input").orElse("");

            boolean isValid = input != null && !input.isEmpty();

            return Map.of("valid", isValid);

        }))

            .addNode("transform", node_async(state -> {

            String input = (String) state.value("input").orElse("");

            String transformed = input.toUpperCase();

            return Map.of("output", transformed);

        }))

            .addEdge(START, "validate")

        .addConditionalEdges("validate",

                    edge_async(state -> {

                Boolean valid = (Boolean) state.value("valid").orElse(false);

                return valid ? "valid" : "invalid";

            }),

            Map.of(

                "valid", "transform",

                            "invalid", END

            ))

            .addEdge("transform", END);

}

在父图中集成子图

方式 1: 直接嵌入

/**

 * 在父图中集成子图 - 方式 1: 直接嵌入

 */

public static StateGraph createParentGraphWithDirectEmbedding() throws GraphStateException {

    KeyStrategyFactory keyFactory = () -> {

        HashMap<String, KeyStrategy> strategies = new HashMap<>();

        strategies.put("data", new ReplaceStrategy());

        strategies.put("output", new ReplaceStrategy());

        strategies.put("result", new ReplaceStrategy());

        return strategies;

    };



    StateGraph subGraph = createProcessingSubGraph();



    return new StateGraph(keyFactory)

            .addNode("prepare", node_async(state -> {

            return Map.of("data", "hello world");

        }))

        // 将子图作为节点添加

        .addNode("process", subGraph)

            .addNode("finalize", node_async(state -> {

            String output = (String) state.value("output").orElse("");

            return Map.of("result", "Final: " + output);

        }))

            .addEdge(START, "prepare")

        .addEdge("prepare", "process")

        .addEdge("process", "finalize")

            .addEdge("finalize", END);

}

方式 2: 使用编译后的子图

import com.alibaba.cloud.ai.graph.CompiledGraph;

import com.alibaba.cloud.ai.graph.OverAllState;

import com.alibaba.cloud.ai.graph.RunnableConfig;



import java.util.Map;



/**

 * 在父图中集成子图 - 方式 2: 使用编译后的子图

 */

public static StateGraph createParentGraphWithCompiledSubGraph() throws GraphStateException {

    KeyStrategyFactory keyFactory = () -> {

        HashMap<String, KeyStrategy> strategies = new HashMap<>();

        strategies.put("data", new ReplaceStrategy());

        strategies.put("output", new ReplaceStrategy());

        strategies.put("processed", new ReplaceStrategy());

        return strategies;

    };



// 先编译子图

CompiledGraph compiledSubGraph = createProcessingSubGraph().compile();



// 在父图中使用

    return new StateGraph(keyFactory)

            .addNode("prepare", node_async(state -> {

        return Map.of("data", "input");

    }))

            .addNode("process", node_async(state -> {

        // 手动调用子图

        Map<String, Object> subInput = Map.of(

            "input", state.value("data").orElse("")

        );

                OverAllState subResult = compiledSubGraph.invoke(subInput, RunnableConfig.builder().build()).orElseThrow();

        return Map.of("processed", subResult.value("output").orElse(""));

    }))

            .addEdge(START, "prepare")

    .addEdge("prepare", "process")

            .addEdge("process", END);

}

状态共享与隔离

共享状态

父子图共享相同的状态键：

// 父子图使用相同的 KeyStrategyFactory

KeyStrategyFactory sharedKeyFactory = () -> {

    HashMap<String, KeyStrategy> strategies = new HashMap<>();

    strategies.put("data", new ReplaceStrategy());

    strategies.put("result", new ReplaceStrategy());

    return strategies;

};



StateGraph subGraph = new StateGraph(sharedKeyFactory)

    .addNode("process", nodeasync(state -> {

        String data = (String) state.value("data").orElse("");

        return Map.of("result", "Processed: " + data);

    }))

    .addEdge(StateGraph.START, "process")

    .addEdge("process", StateGraph.END);



StateGraph parentGraph = new StateGraph(sharedKeyFactory)

    .addNode("prepare", nodeasync(state ->

        Map.of("data", "Input")))

    .addNode("sub", subGraph)  // 子图直接访问 "data" 并写入 "result"

    .addEdge(StateGraph.START, "prepare")

    .addEdge("prepare", "sub")

    .addEdge("sub", StateGraph.END);

状态隔离

子图使用独立的状态空间：

public class IsolatedSubGraphNode implements NodeAction {

    private final CompiledGraph subGraph;



    public IsolatedSubGraphNode(StateGraph subGraphDef) {

        this.subGraph = subGraphDef.compile();

    }



    @Override

    public Map<String, Object> apply(OverAllState parentState) {

        // 提取父状态数据

        String input = (String) parentState.value("input").orElse("");



        // 创建子图独立状态

        Map<String, Object> subState = Map.of("subInput", input);



        // 执行子图

        OverAllState subResult = subGraph.invoke(subState);



        // 将子图结果映射回父状态

        String output = (String) subResult.value("subOutput").orElse("");

        return Map.of("output", output);

    }

}

递归子图

子图可以包含其他子图：

// Level 2 子图

StateGraph level2SubGraph = new StateGraph(keyFactory)

    .addNode("level2Node", nodeasync(state ->

        Map.of("level2Result", "Level 2")))

    .addEdge(StateGraph.START, "level2Node")

    .addEdge("level2Node", StateGraph.END);



// Level 1 子图，包含 Level 2

StateGraph level1SubGraph = new StateGraph(keyFactory)

    .addNode("level1Node", nodeasync(state ->

        Map.of("level1Result", "Level 1")))

    .addNode("level2", level2SubGraph)

    .addEdge(StateGraph.START, "level1Node")

    .addEdge("level1Node", "level2")

    .addEdge("level2", StateGraph.END);



// 父图，包含 Level 1

StateGraph parentGraph = new StateGraph(keyFactory)

    .addNode("parentNode", nodeasync(state ->

        Map.of("parentResult", "Parent")))

    .addNode("level1", level1SubGraph)

    .addEdge(StateGraph.START, "parentNode")

    .addEdge("parentNode", "level1")

    .addEdge("level1", StateGraph.END);

完整示例

import com.alibaba.cloud.ai.graph.*;

import com.alibaba.cloud.ai.graph.state.strategy.*;

import java.util.*;

import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.nodeasync;

import static com.alibaba.cloud.ai.graph.action.AsyncEdgeAction.edgeasync;



// 数据验证子图

public StateGraph createValidationSubGraph() {

    KeyStrategyFactory keyFactory = () -> {

        HashMap<String, KeyStrategy> strategies = new HashMap<>();

        strategies.put("data", new ReplaceStrategy());

        strategies.put("isValid", new ReplaceStrategy());

        strategies.put("error", new ReplaceStrategy());

        return strategies;

    };



    return new StateGraph(keyFactory)

        .addNode("checkFormat", nodeasync(state -> {

            String data = (String) state.value("data").orElse("");

            boolean valid = data.matches("^[A-Za-z0-9]+$");

            return Map.of(

                "isValid", valid,

                "error", valid ? "" : "Invalid format"

            );

        }))

        .addEdge(StateGraph.START, "checkFormat")

        .addEdge("checkFormat", StateGraph.END);

}



// 数据转换子图

public StateGraph createTransformSubGraph() {

    KeyStrategyFactory keyFactory = () -> {

        HashMap<String, KeyStrategy> strategies = new HashMap<>();

        strategies.put("data", new ReplaceStrategy());

        strategies.put("transformed", new ReplaceStrategy());

        return strategies;

    };



    return new StateGraph(keyFactory)

        .addNode("uppercase", nodeasync(state -> {

            String data = (String) state.value("data").orElse("");

            return Map.of("transformed", data.toUpperCase());

        }))

        .addNode("addPrefix", nodeasync(state -> {

            String data = (String) state.value("transformed").orElse("");

            return Map.of("transformed", "PROC_" + data);

        }))

        .addEdge(StateGraph.START, "uppercase")

        .addEdge("uppercase", "addPrefix")

        .addEdge("addPrefix", StateGraph.END);

}



// 主处理流程

public StateGraph createMainGraph() {

    KeyStrategyFactory keyFactory = () -> {

        HashMap<String, KeyStrategy> strategies = new HashMap<>();

        strategies.put("data", new ReplaceStrategy());

        strategies.put("isValid", new ReplaceStrategy());

        strategies.put("transformed", new ReplaceStrategy());

        strategies.put("result", new ReplaceStrategy());

        return strategies;

    };



    StateGraph validationSub = createValidationSubGraph();

    StateGraph transformSub = createTransformSubGraph();



    return new StateGraph(keyFactory)

        .addNode("validate", validationSub)

        .addNode("transform", transformSub)

        .addNode("finalize", nodeasync(state -> {

            String result = (String) state.value("transformed").orElse("No result");

            return Map.of("result", "Final: " + result);

        }))

        .addEdge(StateGraph.START, "validate")

        .addConditionalEdges("validate",

            edgeasync(state -> {

                Boolean valid = (Boolean) state.value("isValid").orElse(false);

                return valid ? "continue" : "error";

            }),

            Map.of(

                "continue", "transform",

                "error", StateGraph.END

            ))

        .addEdge("transform", "finalize")

        .addEdge("finalize", StateGraph.END);

}



// 使用

CompiledGraph graph = createMainGraph().compile();

OverAllState result = graph.invoke(Map.of("data", "test123"));

System.out.println("Result: " + result.value("result").orElse(""));

// 输出: Result: Final: PROC_TEST123

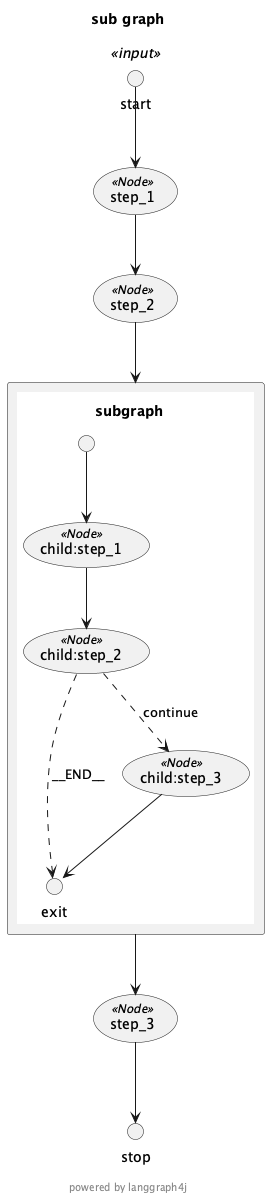

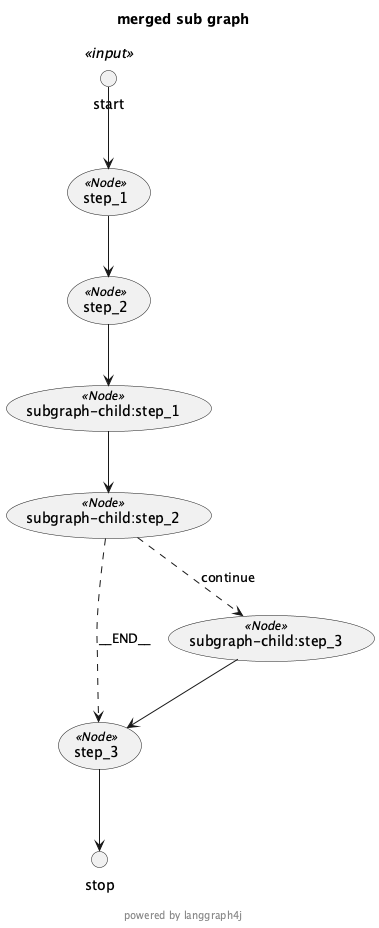

附图
